Package com.sun.msv.reader.xmlschema

Class RedefinableDeclState

java.lang.Object
com.sun.msv.reader.State
com.sun.msv.reader.SimpleState
com.sun.msv.reader.ExpressionState
com.sun.msv.reader.ExpressionWithChildState
com.sun.msv.reader.xmlschema.RedefinableDeclState
All Implemented Interfaces:
ExpressionOwner, ContentHandler
Direct Known Subclasses:
AttributeGroupState, ComplexTypeDeclState, GroupState
public abstract class RedefinableDeclState extends ExpressionWithChildState
state that parses redefinable declaration. "Declarations" are attribute, element, complexType, group, and attributeGroup. simpleType is treated differently.

When this state is used under states other than RedefineState, this class doesn't do anything. When used under RedefineState, this class does several tricks to make redefinition easy.

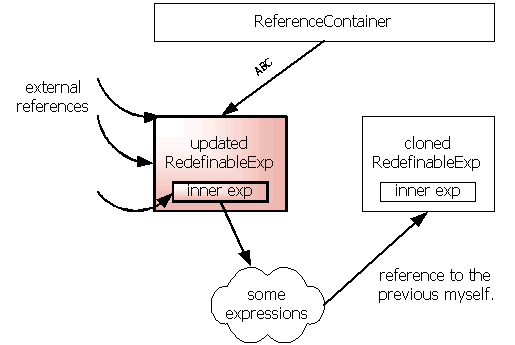

Redefinition is done in the following steps.

Step.1

First, say redefinition of declaration "ABC" is found, "ABC" has already defined once and it is

  • referenced from ReferenceContainer by name, and
  • referenced from other expressions directly.

Step.2

In startSelf method, this class clones the current definition, and updates ReferenceContainer to point to the cloned definition (right side).

Note that other expressions hold direct reference to the original definition (left side), and these references are not affected by this update.

Step.3

Body of redefinition is parsed and corresponding expression is created by derived class. This step is done no differently.

Since ReferenceContainer has updated, any reference to this expression found during this step is bound to the cloned definition. This self reference usually happens.

Step.4

After the body of redefinition is parsed, the original definition (left side) is updated by using new expression.

From now on, redefinition becomes visible to all expressions that hold direct reference to the original definition. The cloned definition is kept as-is so that any self reference found in the body will be maintained correctly.

Step.5

Finally, ReferenceContainer is updated again to point to the updated definition. Therefore successive reference to "ABC" will be bound to the updated definition. Cloned old definition is kept as-is.

  • Field Details

    • oldDecl

      protected RedefinableExp oldDecl
      keeps a reference to previous declaration. this field is used only when in redefine mode. Derived class should use this declaration instead of getting one from ReferenceContainer through XMLSchemaSchema.

  • Constructor Details

    • RedefinableDeclState

      public RedefinableDeclState()

  • Method Details

    • isGlobal

      protected boolean isGlobal()

    • isRedefine

      protected boolean isRedefine()
      Returns true if this declaration is a redefinition of an existing declaration.

    • getContainer

      protected abstract ReferenceContainer getContainer()
      gets appropriate ReferenceContainer to store this declaration.

    • startSelf

      protected void startSelf()
      Description copied from class: State
      performs a task that should be done before reading any child elements. derived-class can safely read startTag and/or parentState values.
      Overrides:
      startSelf in class ExpressionWithChildState

    • endSelf

      protected void endSelf()
      Description copied from class: SimpleState
      this method is called in endElement method when the state is about to be removed. derived-class should perform any wrap-up job
      Overrides:
      endSelf in class ExpressionState
